High Feed End Mills - Steels up to 45 Rc - Variable Pitch - Coolant Through - Reduced Neck

High Feed End Mills
High Feed End Mills-Steels up to 45 Rc-Variable Pitch-Coolant Through-Reduced Neck

HFVC | Carbide End Mills

This offering of High Feed End Mills; products CNC ground in the USA, fully stocked and ready to ship same day; feature straight-through coolant holes for superior chip evacuation and heat management at the cutting edge.

  • Specifically engineered end profile for optimal tool engagement and reduced cutting forces
  • Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
  • Geometry proven to achieve maximum feed rates in steels up to 45 Rc
  • Straight-through coolant hole for superior chip evacuation and heat management at the cutting edge
  • Reduced neck provides maximum strength in long reach and deep pocketing applications
  • End cutting geometry (non-center cutting)
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide end mills
  • CNC ground in the USA
Slotting Slotting
3D Contouring 3D Contouring
Roughing Roughing

Advanced Search

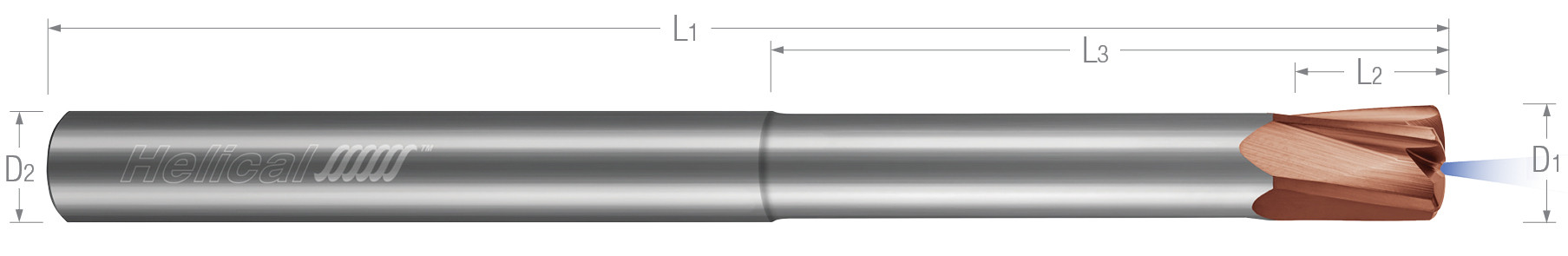

Cutter Diameter Shank Diameter* Length of Cut Overall Length LBS (Reach) Neck Diameter Flutes Theoretical Radius** Tplus Coated Tool Description Add to Cart
D1
+.000"-.002"
 D2(h6) L2
+.032"-.000"
 L1
+.062"-.062"
 L3 . #   Tool # Price
* .0005 max TIR
**Theoretical radius for use when programming in CAM software
